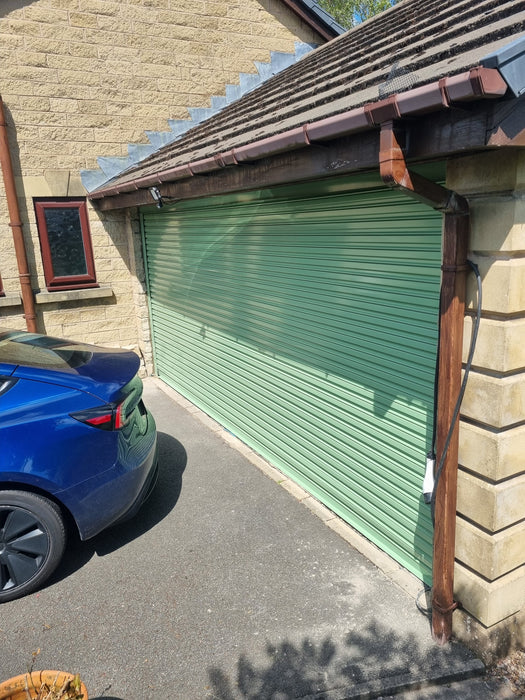

Steel Garage Roller Shutter (Electric)

At Britannia Retail, we manufacture high quality, high strength Roller Shutters. These Steel Garage Roller Shutters / Garage doors are perfect for Domestic usage and provide a higher level of protection then your standard aluminium domestic shutters seen in the market while providing a domestic aesthetic.

These Roller Shutters are manufactured from 22SWG galvanised steel with the option of plastisol finish/coated and electrically operated by Key Switch, Rocker Switch or remote control, depending on preference. These Shutters come with internal manual override built onto the motor as standard, which allows you to wind up the door manually from inside the building in the event of power failure.

The shutters will be manufactured to suit your exact requirements & security needs. We have two fitting styles (Fix between and Plant on). The shutters can be installed onto brickwork, steelwork & wood dependant on the strength of the build.

If a heavier grade lath is required then we would recommend looking at our Industrial style Roller Shutters that have a thicker gauge lath and heavier duty motors as standard for an extra layer of security.

• 75mm Curved + flat Solid lath in 22swg galvanised steel with plastisol
• 50 x 50mm full height galvanised steel supporting angles
• welded to steelhead plates
• 100mm 16swg motor barrel assembly with lost bobbin dummy end

• L or T section galvanised steel bottom rail
• 240volt single phase tubular motor
• Internal manual override facility
• Fitting instructions are provided & we also offer a telephone technical support service to help with your install.
• 305mm Squared flagplates
• Safety Brakes are a required feature is the Shutter is used as an access point/Pedestrian walkway.

Click to download the TECHNICAL SPECIFICATION
