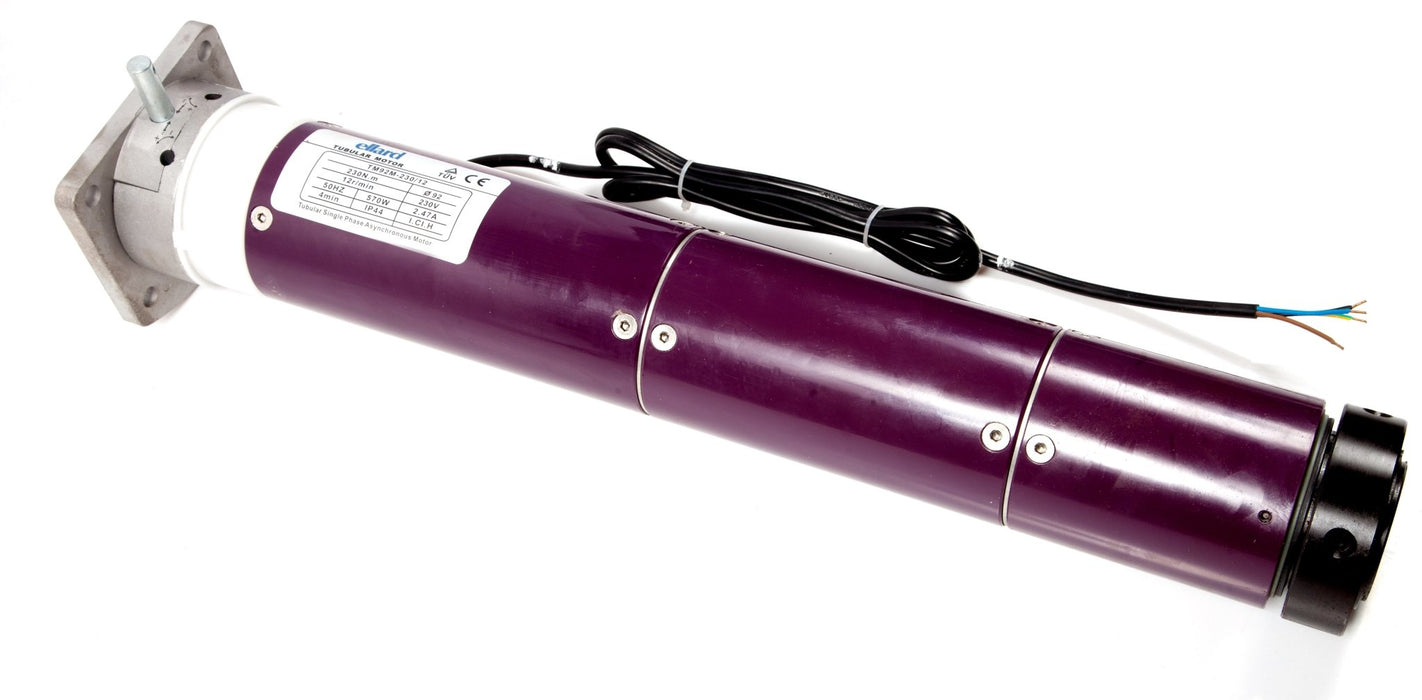

Ellard Tubular Motors - Britannia Retail

Ellard Tubular Motors

£45.00 - £45.00
£45.00
£60.00
£60.00 - £280.00
£60.00
Price:
DESCRIPTION

TUBULAR MOTORS INFORMATION
All motors CE, MLV and ROHS compliant
All motors electrically tested prior to leaving the factory
Easily adjustable mechanical limits
Full range of tubular motor adaptors available
Our range covers many applications from residential to commercial and industrial
SPECIFICATIONS
  • Tube Motor - 59 SERIES 5 Year Warranty Motors
    Model Output Torque Voltage Output Speed Output Power Rated Current Manual Override
    ED59/ 80M 80Nm 230v 15rpm 345W 1.54 amps Yes
    ED59/100W 100Nm 230v 12rpm 340W 1.52 amps No
    ED59/100M 100Nm 230v 12rpm 345W 1.54 amps Yes
    ED59/140M 140Nm 230v 7rpm 382W 1.66 amps Yes
    DP59/120M 120Nm 230v 13rpm 365W 1.66 amps Yes
    Tube Motor - 64 SERIES 5 Year Warranty Motors
    Model Outout Torque Voltage Output Speed Output Power Rated Current Manual Override
    ED64/180M 180Nm 230v 7rpms 558W 2.47amps Yes
    Tube Motor - 92 SERIES 5 Year Warranty Motors
    Model Output Torque Voltage Output Speed Output Power Rated Current Manual Override
    HA2/230MA 230Nm 230v 12rpm 570W 2.47 amps Yes


TECHNICAL SPECIFICATION

TECHNICAL SPECIFICATION Content
